MHealth: A Real-Time Multicast Tree Visualization and Monitoring
Tool
Written by
David Makofske
(davidm@cs.ucsb.edu)
and
Kevin Almeroth
(almeroth@cs.ucsb.edu)
MHealth, the Multicast Health Monitor, is a
graphical, near real-time multicast monitoring tool.
By using a combination of application
level protocol data about group participants, and a multicast route tracing
tool for topology information, MHealth is able to discover and display the
full network tree distribution and delivery quality.
MHealth also provides
data logging functionality for the purpose of isolating and analyzing
network faults.
Logs can be analyzed to provide information
such as receiver lists over time, route
histories and changes, and the location, duration, and frequency of loss.

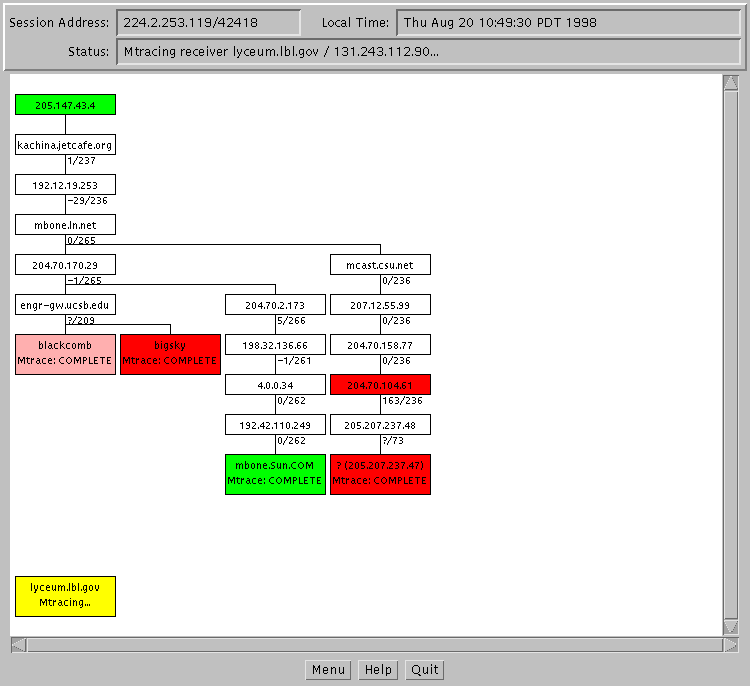

MHealth screenshot:
Papers
A paper on the design and development of MHealth will be published
in the NOSSDAV 99 conference proceedings. A gzipped postscript, PDF and
a text abstract are
available here:
-
D. Makofske and K. Almeroth,
"MHealth: A Real-Time Multicast Tree Visualization and Monitoring Tool"
[Gzipped Postscript |
PDF],
Network and Operating System Support for Digital Audio and
Video (NOSSDAV '99) , Basking Ridge New Jersey, USA, June 1999.
[
Text Abstract]
Download MHealth
A beta version of MHealth is currently available:
- Version 1.0 - the 1.0 version of MHealth is available
for evaluation purposes, but is still under construction.
DOWNLOAD HERE
